API Access

AgentLane doesn’t currently issue platform API keys for third-party developers — there’s no /settings/api page or /api-keys route. What the platform does expose programmatically is documented here: the REST API behind the Portal itself, outbound webhooks you register to receive AgentLane’s own events, and the BYOK credentials vault that stores the third-party keys AgentLane uses on your behalf.

REST API & Bearer Token Authentication

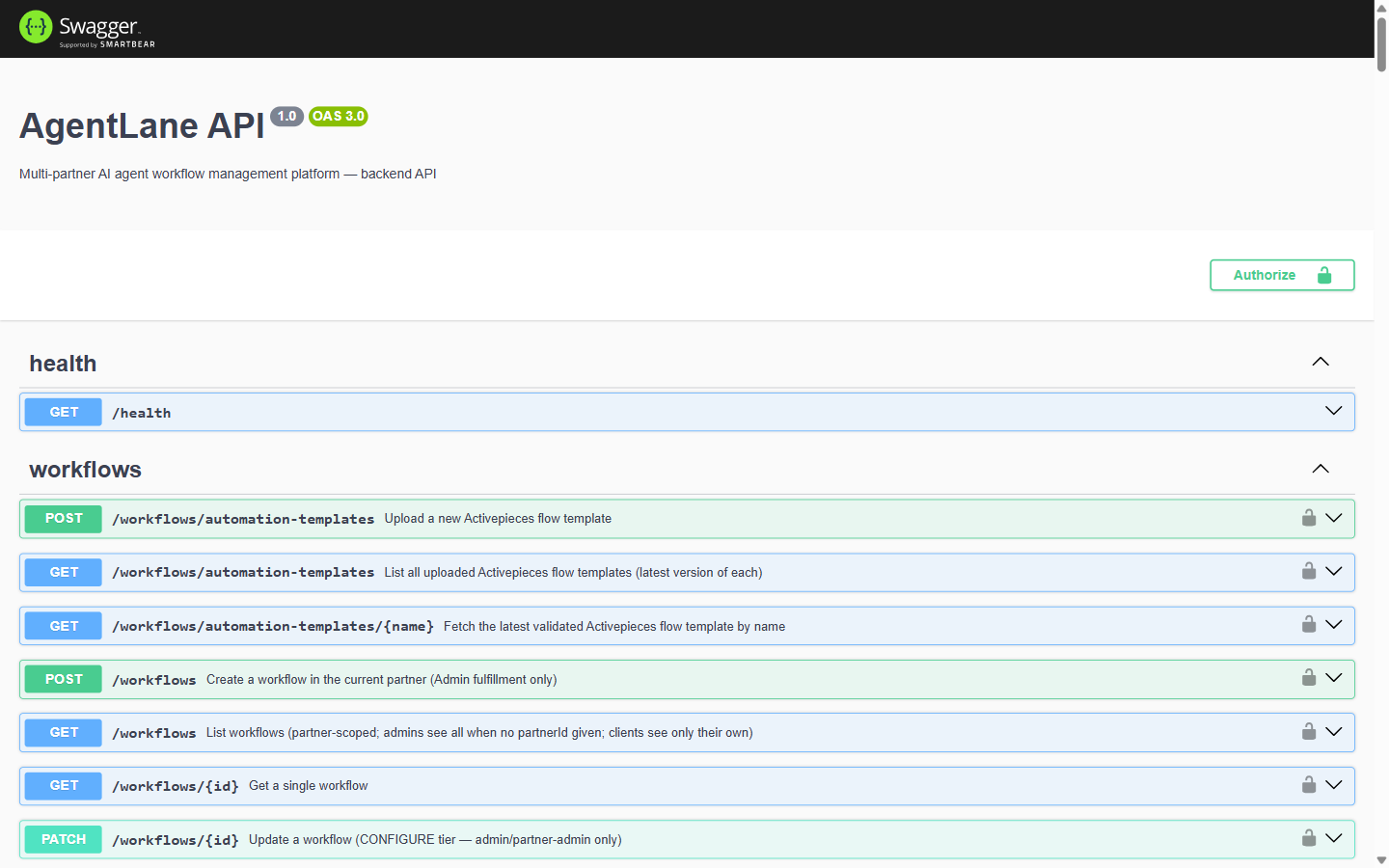

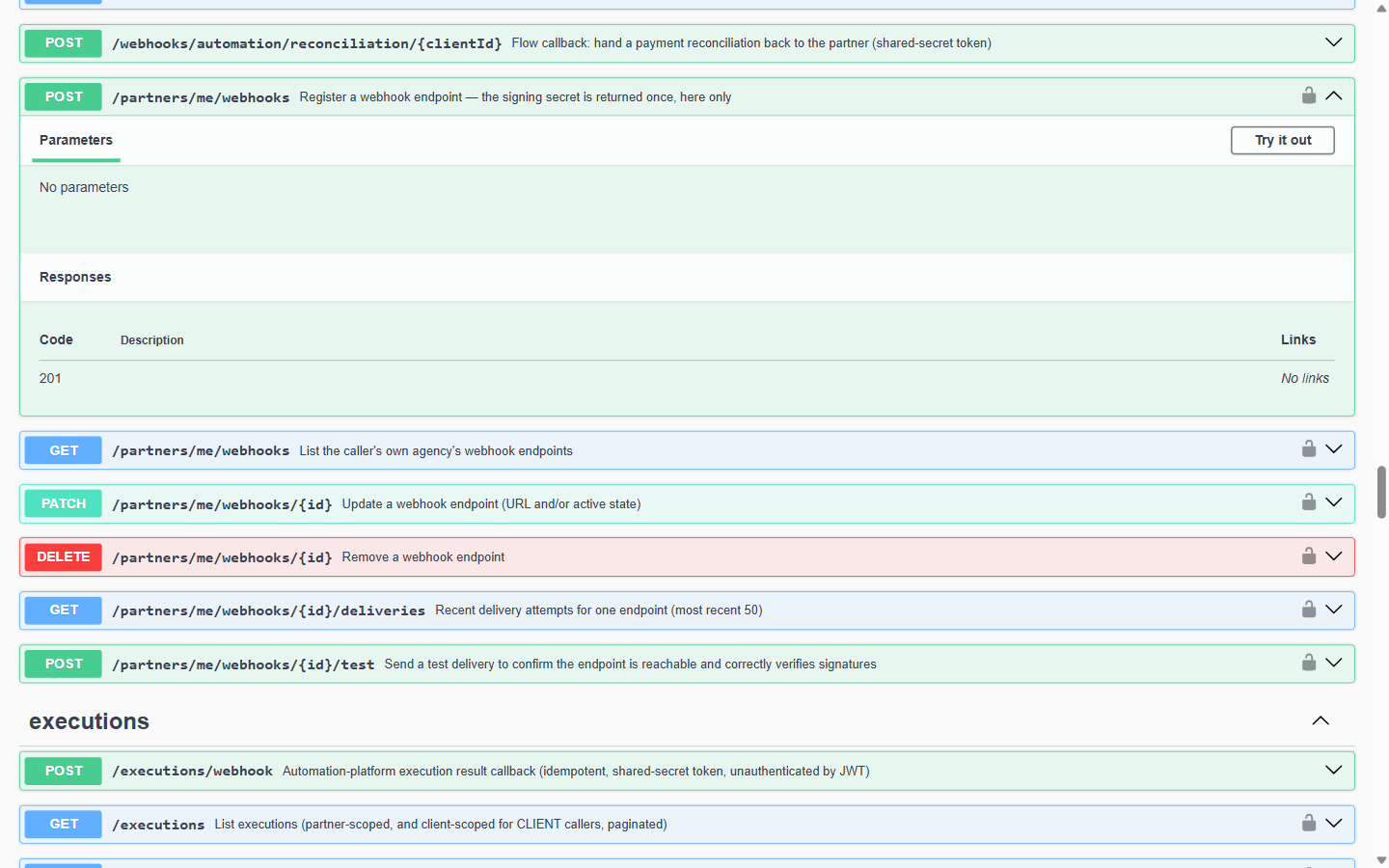

Every route in the Portal is backed by the same NestJS REST API, browsable at /api/docs (Swagger UI) with the raw OpenAPI document at /api/docs-json.

Security note: /api/docs is public and unauthenticated — it’s mounted outside the API’s global auth guard, so anyone with the URL can browse the full endpoint and schema surface (though not call authenticated routes without a token). If you’re self-hosting AgentLane and want to restrict this, put it behind your own reverse-proxy auth rule; there’s no built-in toggle to disable it.

The API groups its endpoints into tags, one per domain area:

Getting a token

POST /auth/login
{ "email": "...", "password": "..." }

→ { "accessToken": "<jwt>", "user": { "id", "email", "role", "partnerId", ... } }

Send it back on every subsequent request:

Authorization: Bearer <accessToken>

The JWT payload carries { sub, email, role, partnerId, partnerRole?, clientId?, authMethod? } — role (ADMIN/PARTNER/CLIENT) and the partner/client IDs are what PartnerGuard/ClientGuard use to scope every request server-side; a PARTNER or CLIENT caller can never pass a different partner/client ID than their own.

If the account has MFA enabled, /auth/login returns { mfaRequired: true, tempToken } instead of a session — see Authentication & Security → Multi-Factor Authentication for the full exchange.

Token lifecycle

• Expiry: 1 day by default (JWT_EXPIRES_IN). There is no refresh-token endpoint — once expired, call /auth/login again.
• Rate limits: 100 requests/60s per caller by default, plus a separate per-partner throttle. A few auth routes override this: register/register-trial allow 300/min, mfa/verify allows 20/min.
• CORS: the API only accepts cross-origin requests from an explicit, env-configured origin allowlist (CORS_ORIGINS) — not a wildcard.

Outbound Webhooks

This is the technical reference for the feature configured at Settings → Webhooks (/dashboard/settings/webhooks) — see the Partner Dashboard reference for the UI walkthrough.

A partner may register at most 5 endpoints. The URL is validated against private/internal IP ranges (SSRF protection) both at registration and again at delivery time, so an endpoint that later resolves to a private address stops receiving deliveries.

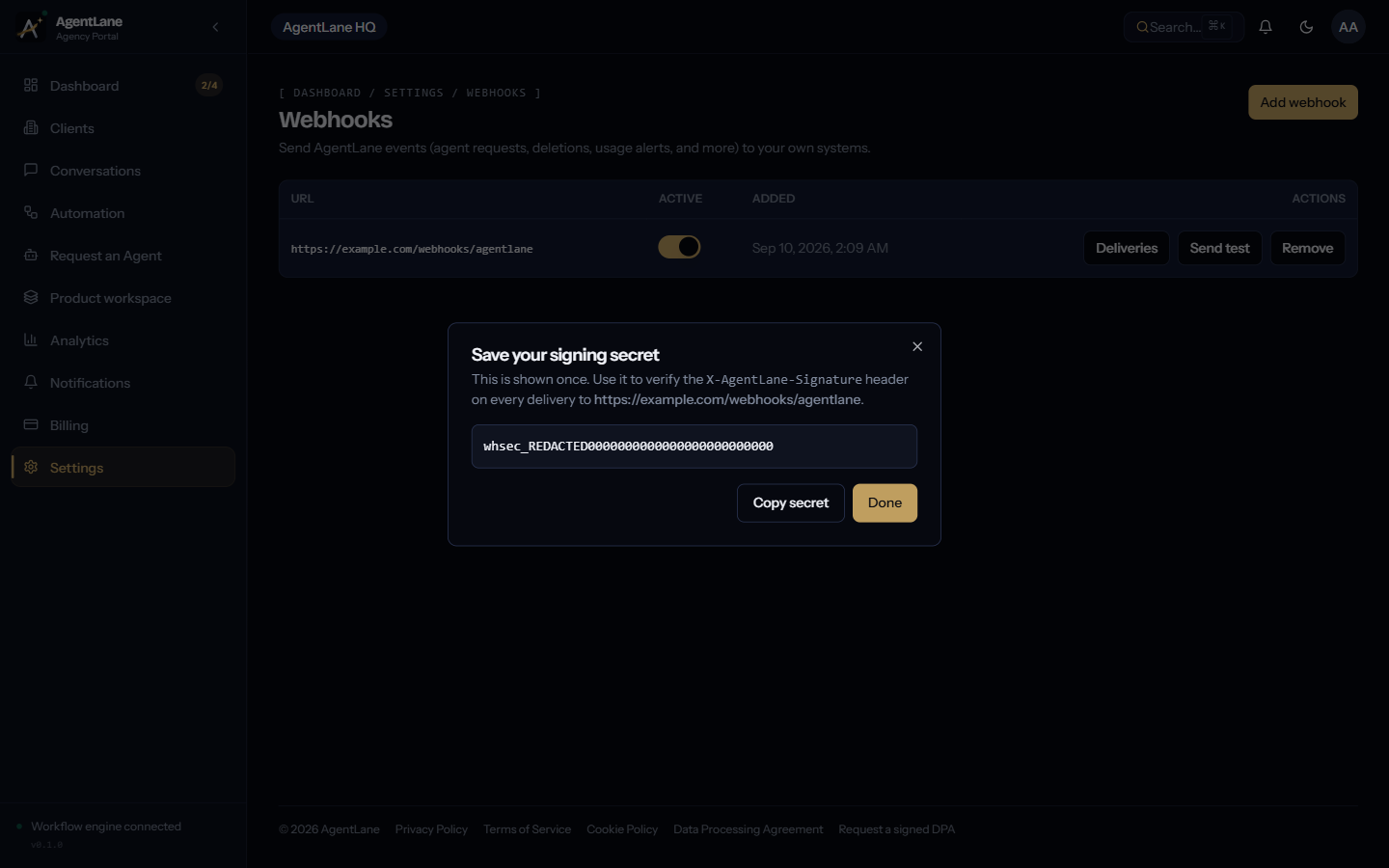

Verifying a delivery

Every delivery is a signed JSON POST, modeled on Stripe’s webhook convention:

body      = JSON.stringify({ id, type, createdAt, data })
timestamp = <current Unix time in seconds>
signature = hex(HMAC_SHA256(secret, `${timestamp}.${body}`))

POST <your endpoint URL>
Content-Type: application/json
X-AgentLane-Event: <event type, e.g. "agent_request.resolved">
X-AgentLane-Signature: t=<timestamp>,v1=<signature>

To verify: recompute the HMAC over ${t}.${raw request body} using your endpoint’s secret, and compare it to v1 — reject the request if they don’t match, or if t is further in the past than you’re willing to tolerate (a replay-window check is your responsibility, same as with Stripe). See Troubleshooting → Webhook deliveries if a delivery keeps failing.

Event types

Retries

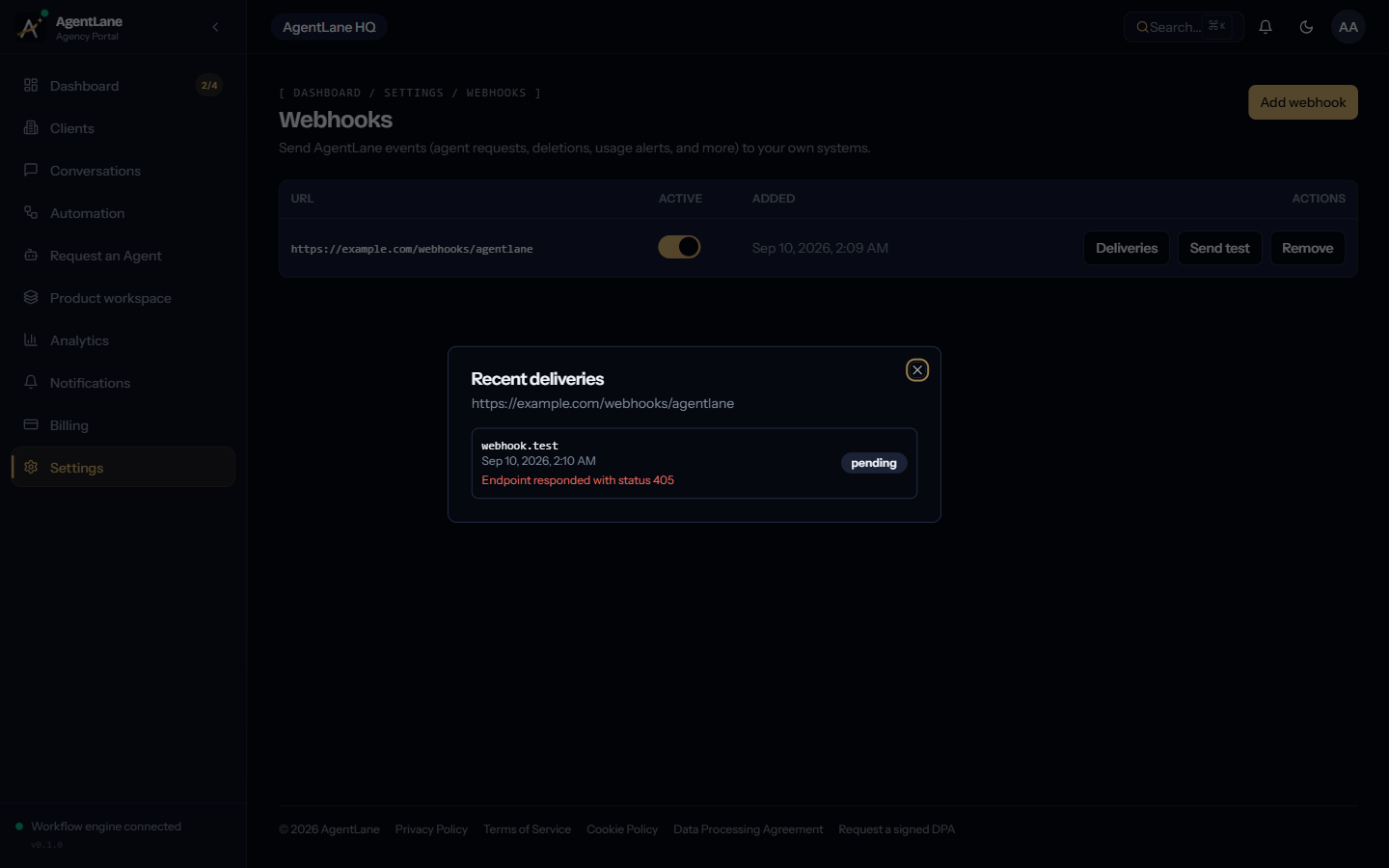

Deliveries run on a BullMQ queue: 5 attempts, exponential backoff starting at 5 seconds, with a 10-second request timeout per attempt. A delivery’s logged status is delivered (2xx response), pending (still retrying), or failed (attempts exhausted, or the endpoint was rejected outright, e.g. by the SSRF check). See Troubleshooting → Webhook deliveries for what to check when deliveries keep failing.

BYOK Credentials Vault

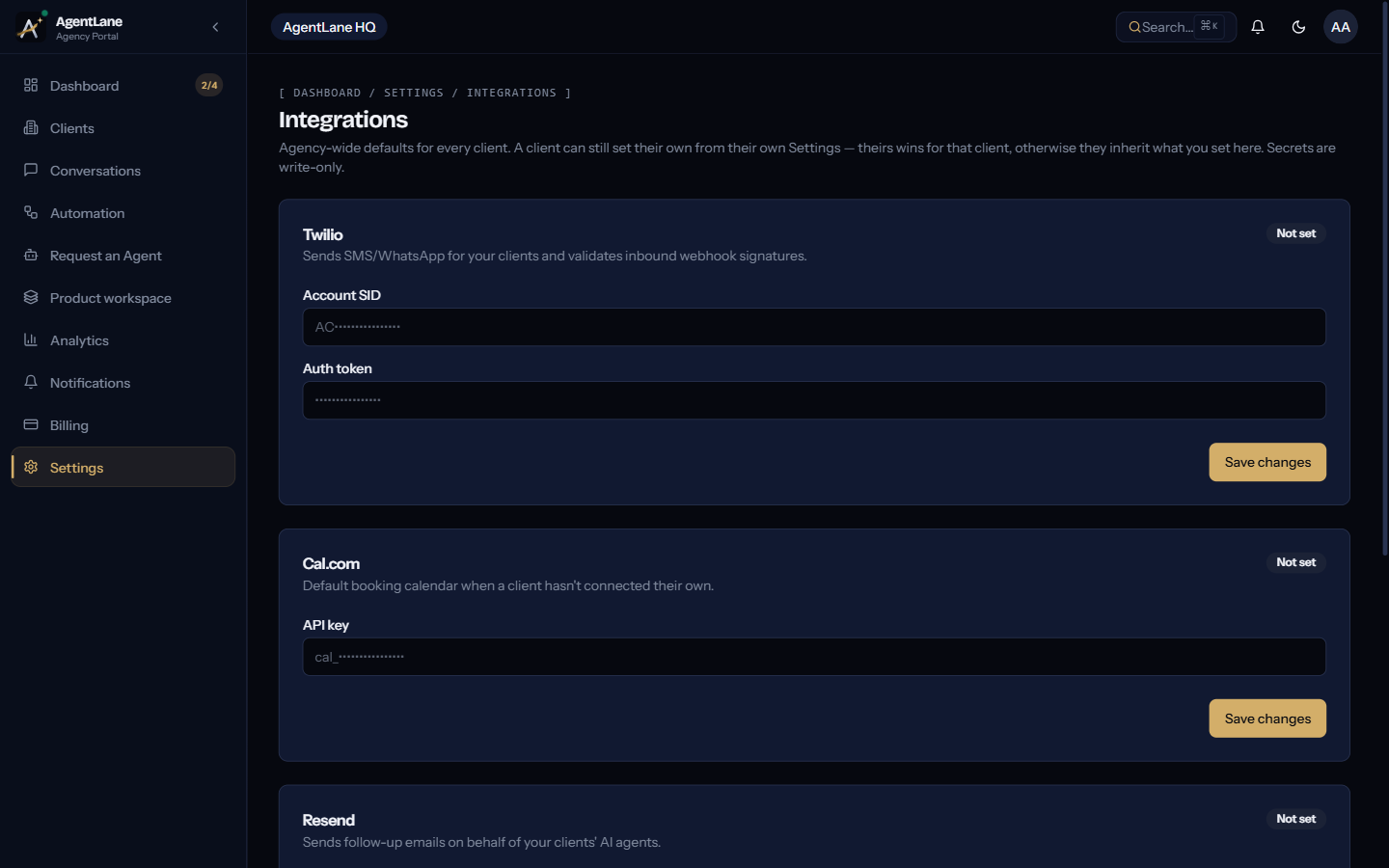

This is the technical reference for the third-party credential storage configured at Settings → Integrations (agency-wide defaults — see Connect your integrations) and Settings → Credentials (per-client overrides, see Client Portal reference).

provider is one of anthropic, openai, cal_com, resend, twilio, postgres, customjs. Only anthropic and openai are eligible for sourceMode: "platform" (AgentLane’s own managed key) — every other provider must be "byok".

customjs is schema-listed but isn’t a real stored credential — it’s a step capability flag, excluded from the connection-requirement checks the other providers go through.

A GET /credentials row looks like:

{ id, provider, clientId: uuid | null, sourceMode, configured: boolean, updatedAt, inherited?: boolean }

clientId: null means an agency-wide default; inherited: true marks a client-level row that’s actually just showing the agency’s default rather than a client-specific override. Secrets are encrypted at rest (AES-256-GCM) and are write-only through this API — a saved value never round-trips back to a client. See Troubleshooting → Credentials & permissions if a credential resolves to the wrong value.

Sending a business event to an agent

A provisioned agent runs when a real business event reaches it — a missed call, a web-form submission, a new CRM record. There are two ways in.

Public ingest URL (for third-party senders)

Every provisioned workflow has its own inbound URL. This is what you give a telephony provider, a website form or a CRM: it needs no AgentLane login.

GET /workflows/{workflowId}/ingest-url        # partner-scoped, returns the URL below
POST /webhooks/agents/{workflowId}?token=...  # the URL itself

GET /workflows/{workflowId}/ingest-url returns:

{ workflowId, url, method: "POST" }

POST your event as a JSON body. The keys are whatever that agent’s template reads — for Missed-Call Text Back, callerNumber and businessNumber. The response is 202 Accepted with { accepted: true, executionId }; the run itself is asynchronous and appears in Automation → Runs.

The run still passes the ordinary checks: an inactive workflow is refused, and an over-quota partner is refused.

Authenticated trigger (for your own backend)

If the caller already holds an AgentLane JWT, use the role-gated route instead — it needs no URL secret:

POST /workflows/{workflowId}/trigger
{ "input": { ... } }

Available to ADMIN, PARTNER and CLIENT callers, scoped to workflows they own.
